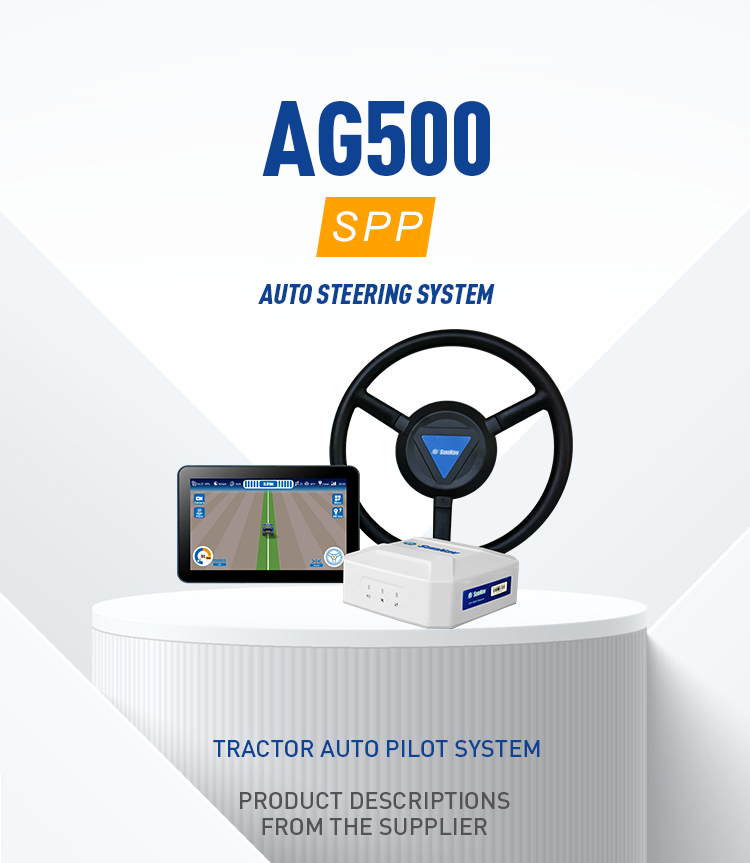

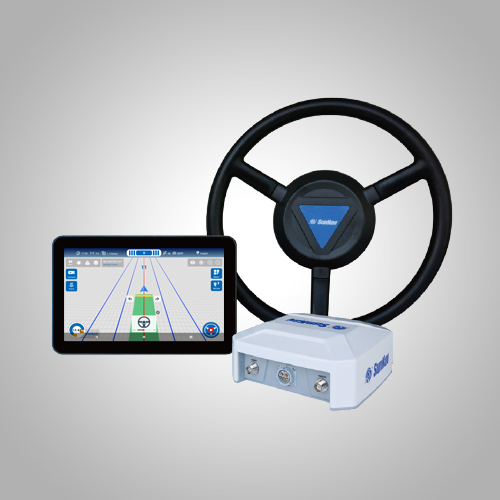

AG500SPP GNSS Auto-Steering System

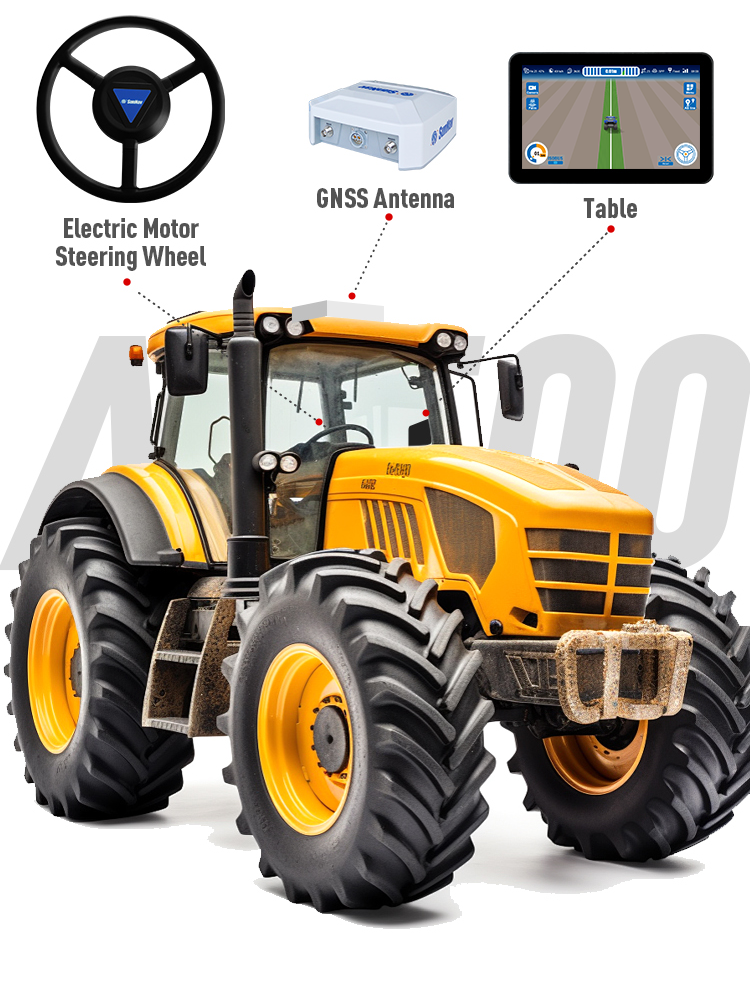

SunNav AG500 SPP auto steering system integrates high-precision GNSS technology to achieve accurate tractor control and navigation. With notable advantages in efficiency, energy conservation, precision, safety, and affordability, AG500 SPP significantly enhances agricultural machinery operations.It improves efficiency, reduces labor costs, and provides farmers with a more convenient, efficient, and intelligent agricultural machinery experience. It is versatile, applicable to tasks such as sowing, cultivating, trenching, ridging, pesticide spraying, transplanting, land consolidation, harvesting, andmore.

INSTALLATION WITHIN 30 MINS
KEY FEATURES

A+

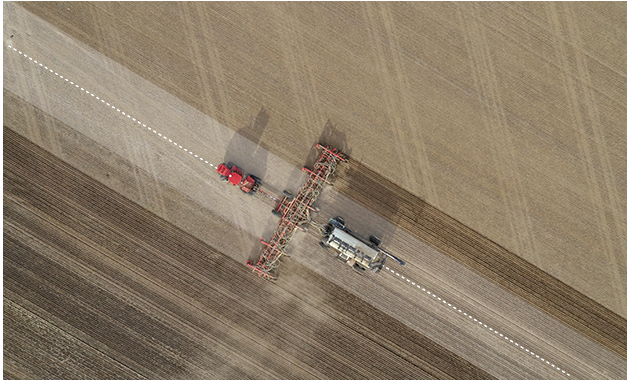

Only need to set point A, and the work line can be generated in situ.Avoid compacting the ground, crushing crops, save time and cost.work more efficiently

Section Control(optional)

Automatic close the sections wnich are in an already fertilized area,avoid fertilization overlapping, avoid wasting or damaging to the crop.

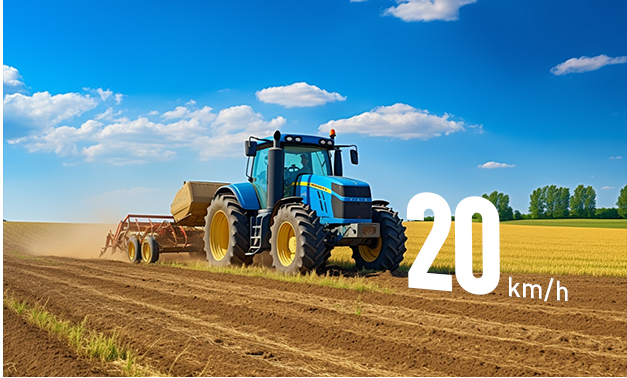

High Speed

Support 20KM/H high speed working

Compatible

Compatible with more than 95% of tractor brands. harvesters,rice trans planters,seeders, and other agricultural implements

U-turn

Enables the tractor to turn around automatically at the end of each row andproceed to the next one

SunNav AG500 SPP auto steering system integrates high-precision GNSS technology to achieve accurate tractor control and navigation. With notable advantages in efficiency, energy conservation, precision, safety, and affordability, AG500 SPP significantly enhances agricultural machinery operations.It improves efficiency, reduces labor costs, and provides farmers with a more convenient, efficient, and intelligent agricultural machinery experience. It is versatile, applicable to tasks such as sowing, cultivating, trenching, ridging, pesticide spraying, transplanting, land consolidation, harvesting, andmore.
  • Features
  • Specifications

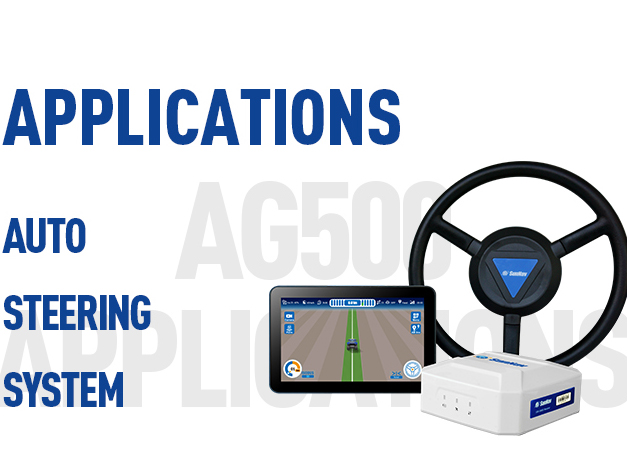

  • Application
* Free your hands, Go to work easily
* NO need network CORS service
* NO need RTK base station
* work accuracy: 2.5cm

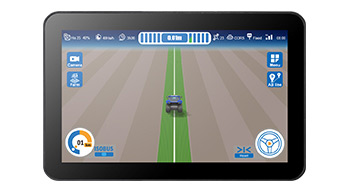

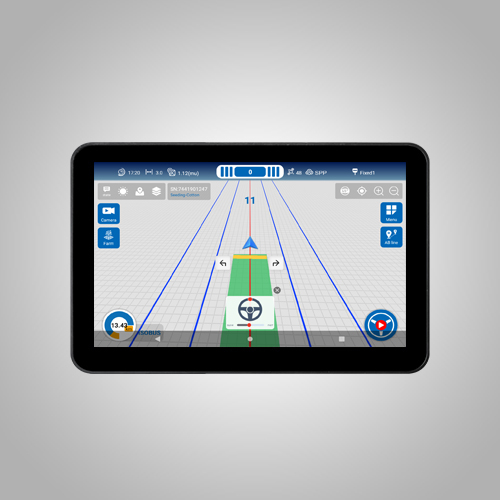

CONTROL TABLET

System
0perating System: Android 10
LCD:10.1"Capacitive Touch Screen


Communication
Wi-Fi:EEE 802.11 a/b/g/n/ac/r,2.4G&5G 4G network
Bluetooth:Ver 5.0 supports BLE Support 2 CAN bus
Support 2 RS232 channels,1 RS485 channel


Physical
Dustproof&Waterproof:lP-67
Dimension:263mmx181mmx45mmWeight: 1.7kg

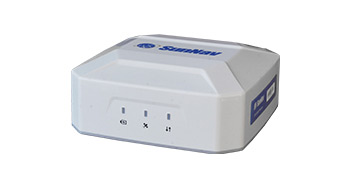

SMART GNSS RECEIVER

Built-in GNSS board.lMU sensor, Radio(optional),Antenna
Physical Dimension:179x179x69mm
Weight: 1.1Kg
Protection Level: lP67
Supply Voltage: DC 9~36V
Signal: GPSL1/L2,BDS B1/B2,GLONASS L1/L2,
Galieo E1/E5a/E5b,QZSS L1/L2/L5
Data Format: NMEA 0183,Binary code

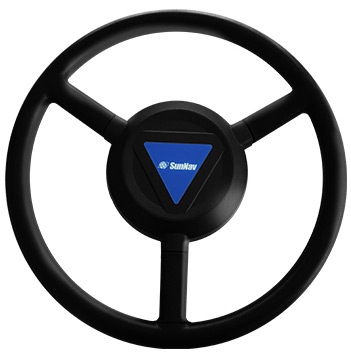

HIGH-TORQUE MOTOR WHEEL

Motor Performance

Rated torque: 4Nm
Maximum Torque: 9Nm
Supply voltage: 6V~35V DC



Physical Dimension

Diameter:182mm (motor) Weight: 2.9 kg (motor only)

Thickness:61mm (motor) Material: Aluminum alloy(motor)

Diameter: 410mm (steering wheel)

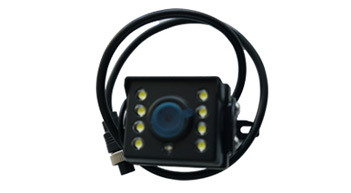

CAMERA

Pixel: 720P
Support reversing image
