Signal Tracking
394 channels satellite signals
-GPS: L1 CA, L1P, L1C, L2P, L2C,L5
-BeiDou: B1, B2, B3
-GLONASS: G1, G2, P1, P2
-GALILEO:E1BC, E5a, E5b
Positioning Specifications
Post Processing Static
-Horizontal: 2.5 mm + 1 ppm RMS
-Vertical:5 mm + 1 ppm RMS
Real Time Kinematic
-Horizontal: 10 mm + 1 ppm RMS
-Vertical: 20 mm + 1 ppm RMS
Atlas: H10:0.08m
SBAS:0.3m
Performance Specifications
Cold start: <50 s
Warm start: <30 s
Initialization time: <10 s
Singal re-acquisition: <2 s
Initialization reliability: >99.9%

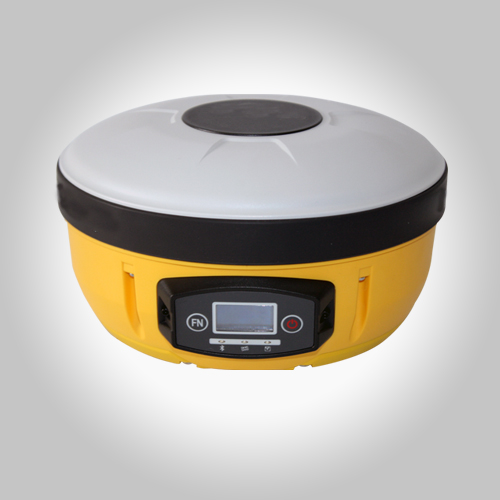

Physical
Size (W x H): 184mmx96mm
Weight: 1.2kg (include battery)
Button: FN + Power
Display:128x 62 OLED Screen

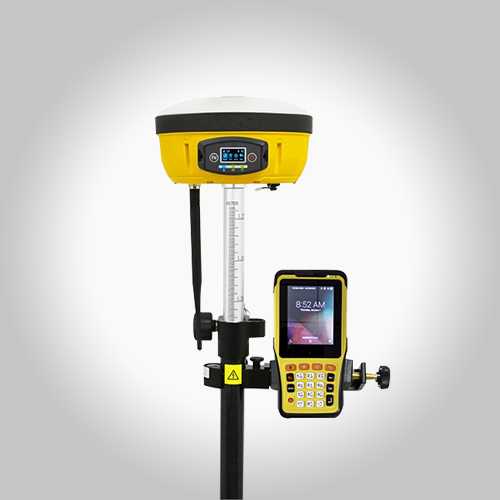

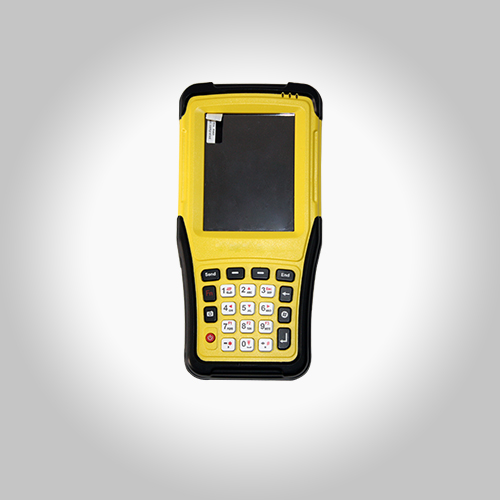

P9 controller
Operation system: Windows Mobile6.5
Processor:TI Sitara™ AM335x 1GHz
RAM:512MB ROM: 8G
Screen: 3.7inch Blanview TFT transflective screen,
480×640VGA resolution ratio
Battery: 25.16W big capacity battery , single battery
endurance>10hours
Communication:Bluetooth, Version2.1+EDR,
USB OTG (directly conenct Uflash disk)
Communication module: 3.5G WCDMA 900 / 2100MH
WIFI: WLAN 802.11b/g
Data Format
Data inputs/outputsPosition data outputs
-Correction data 1/0: RTCM 2.X, 3.X, CMR , CMR+
-ASCII: NMEA-0183
-Binary update to 50Hz
Environmental
Operating temperature: -40°C to +65°C(-40°F to 149°F )
Storage temperature: -40°C to +75°C(-40°F to 167°F )
Humidity: 100% condensation
Waterproof and dust proof: IP67 protected fromtemporary immersion to depth of 1 meter, floats
Shock: survives a 2 meter drop on to concrete
Electrical
Input Voltage: 9-18 VDC
Liion battery capacity: 2 x Rechargeable and Removable 3400 mAh Lithium-ion Battery up to10 hours typically
Software
1 Serial port (7 pin Lemo),
1 Serial port (5 Pin Lemo),
2 TNC antenna,Memory: 256 MB internal with up to 32GB pluggable memory card Baud rates Up to 115,200 bps
Esurvey field data collection software
SurveyCE data collection software
Communications and Memory
Radio modem:
-Integrated GSM/GPRS modem
-Integrated Bluetooth V2.0 class 2
-Radio modem internal Rx/Tx: 410-470 MHz
-External Tx : 5W 35W adjustable
Communication protocol
-Transparent,TT450S,South,TrimMask 111(19200),South 19200
Position data outputs, 1Hz Standard, 5Hz/10Hz Optional
