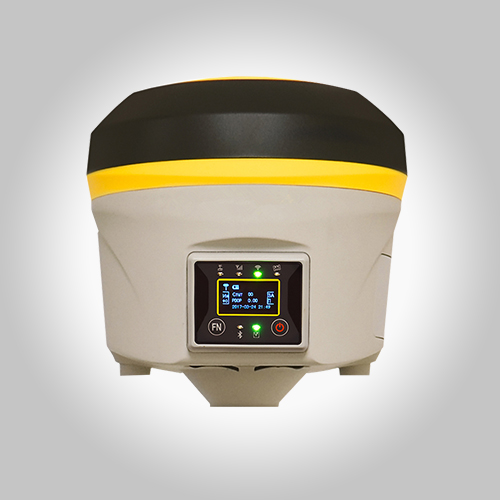

G10 GNSS Receiver

G10 brings you GNSS RTK mea-surement technology revolution, extreme compact Magnesium alloy body, equipped with the new level of RTK intelligent control platform. This device integrates electronic bubble, tilt correction surveying and WebUI control.

In addition to upgrading hardware, SunNav brings RTK survey cloud services to more users, helps you to enhance the core competitiveness of mobile Internet era.

G10 overturns the traditional and enlightens the future!

  • Features
  • Specifications
  • Aplication

 G10 integrated intelligent RTK product uses top GNSS board and latest antenna technology, realizes the full compatibility of GPS,GLONASS,Beidou,Galileo and other satellite signals, and reserved the QZSS system.

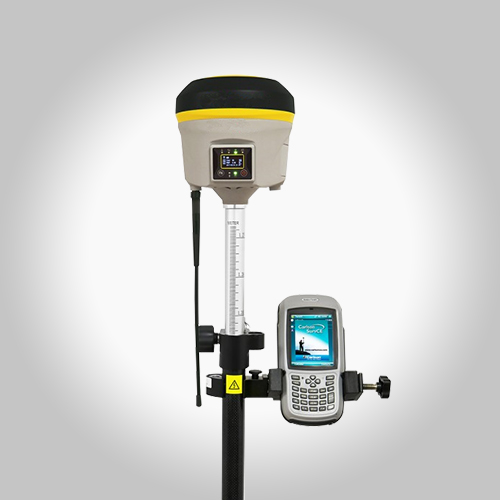

 The tilt compensator installed inside can automatically correct the coordinates of the points collected in accordance with the tilt angle and tilt direction of the range pole. In this way, it is not necessary to center it precisely.

■ The cloud service function enables the realization of real-time remote control, remote upgrade, remote smart check and real-time position monitoring to rovers via network.

■ Positioning data is saved on the controller, on receivers as well as on the cloud storage, which ensures 100% data safety with no worry to lose any valuable data tracked.

■ G10 is delivered with smart batteries. The power level can be checked from the controller and directly from a simple led on the battery by the simple press of a button.


Channels :220 GNSS

Satellites Tracked

-GPS:L1C/A, L2C, L2E, L5


-GALILEO: El, E5A, E5B(reserved)


- MBOC (6,1, 1/11), BI

-2 (QPSK),B2 (QPSK),B2

-BOC (10,5),B3(QPSK),B3BOC(15,2,5),l5(QPSK)

 -QZSS: Ll C/A, Ll SAIF, L2C, L5

Position Rate: Up to 50

HzSignal Reacquisition: < 1 sec

RTK Signal Initialization: Typically < 10 s

Hot Start: Typically < 15 s

Initialization Reliability: > 99.9 %

Internal Memory: 4 GB (Over 45 days of raw static data storagewith recording sample every 1 second)

Micro SD Card: Expansion slot with 4 GB internal memory (32 GBoptional)


High Precision Static Surveying (Long Time Observations)

Horizontal: 2.5 mm + 0.1 ppm RMS

Vertical: 3.5 mm + 0.4 ppm RMS

Fast Static

Horizontal: 3 mm + 0.5 ppm RMS

Vertical: 5 mm + 0.5 ppm RMS

Code Differential Positioning

Horizontal: 0.25 mm + 1 ppm RMS

Vertical: 0.45 mm + 1ppm RMS

SBAS Positioning(Typical)

Horizontal: 0.5 m RMS² Vertical: 0.8 RMS²

Real Time Kinematic(<30km)-Network Surveying³

Fixed RTK Horizontal: 8mm +0.8ppm RMS

Fixed RTK Vertical: 15mm + 1ppm RMS

Tilted Positining(2m Pole)

10°inclination 20 mm RMS

20°inclination 30 mm RMS

30°inclination 50 mm RMS

Internal Radio

Frequency Range: 410-470MHz

Channel Spacing: 12.5KHz/25 KHz

Rx/Tx Power:2W

Maximum Range: 3-4 Km in urban environment, up to10 Km with optimal conditions.

Protocol: Transparent EOT/EOC/FST, SATEL. South,TRIMTALX 11/11e, TRIMMARK 3, TRIMTALK 450S


Connectors I/O

7-pins Lemo and 5-pins Lemo Interfaces. Multifunction cablewith USB interfaces for PC connection.

Bluetooth device: 2.4 GHz class Il

Wi-Fi: IEEE 802.11 b/g/n

Web UI: To upgrade the software, manage the status andsettings, data download, etc. via smart phone, tablet or otherinternet enabled electronic device

Navigation outputs: ASCII (NMEA-0183) GSV, AVR, RMC, HDT,VGK, VHD, ROT, GGK, GSA, ZDA, VTG, GST, PJT, PJK, BPQ,Reference outputs: CMR, CMR+, sCMRx, RTCM2.1, RTCM2.3RTCM3.O, RTCM3.1,GRS, GBS.

Integrated GNSS Antenna

High accuracy for constellation micro-strip antenna,zero-phase center with internal multipath suppressive board.

Wireless Module

Band: GSM/GPRS/EDGE: 850/900/1800/1900 MHzWCDMA/HSDPA: 850/1900/2100 MHz

Output Power: GSM850, EGSM900: 33 dBm(2W),GSM1800,PCS1900: 30 dBm(1W), WCDMA: 24 dBm

Power Supply

Battery: Rechargeable and replaceable 11.1 V -3400 -37.74Whintelligent lithium battery
Voltage: 9 to 22 V DC external power input

Working Time in Static ( GPS+GLONASS):12hours

Working Time in GSM RTK( GPS+GLONASS):6.5hoursCharge Time(2batteries):Typically 4hours

Power Consumption:<6w

Physical Specification

Size: Φ14cm×14.4cm H

Operating Temperature: -40°Cto 65°C (-22°Fto149°F)

Storage Temperature: -40°Cto 85°C (-40°Fto185°F)

Operating Temperature with UHF UHF Radio:-30°Cto 50°C

Waterproof/ Dustproof: IP67

Shock Resistance: Designed to endure to a 2 m pole drop onconcrete floor with no damage. Designed to endure a 1 m freedrop on hard wood floor with no damage

Vibration : Vibration resistant
