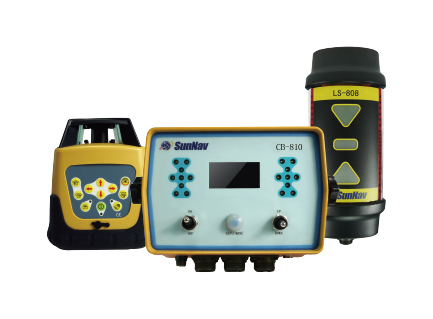

AG808+ Laser Land leveling system

AG808+ series products are auto land leveling control system developed by our company for land leveling application which is based on laser and electric hydraulic control. The system is high accuracy, high precision of EHC, stableperformance, easy operation, dust and water proof, shockproof and durable, It is used for high precision land leveling, the accuracy is +/-2cm, it helps for water-saving irrigation, uniformly fertilization and output increasing.

  • Features
  • Specifications
  • Aplication

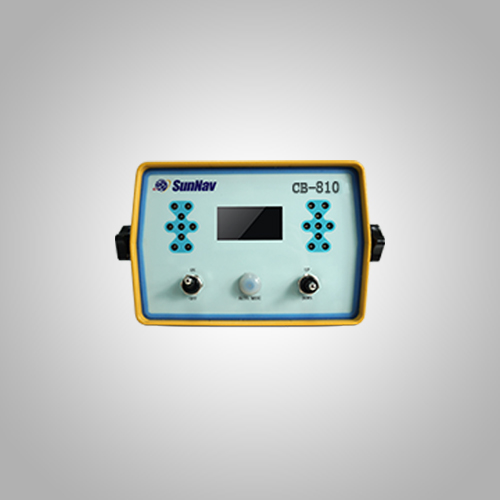

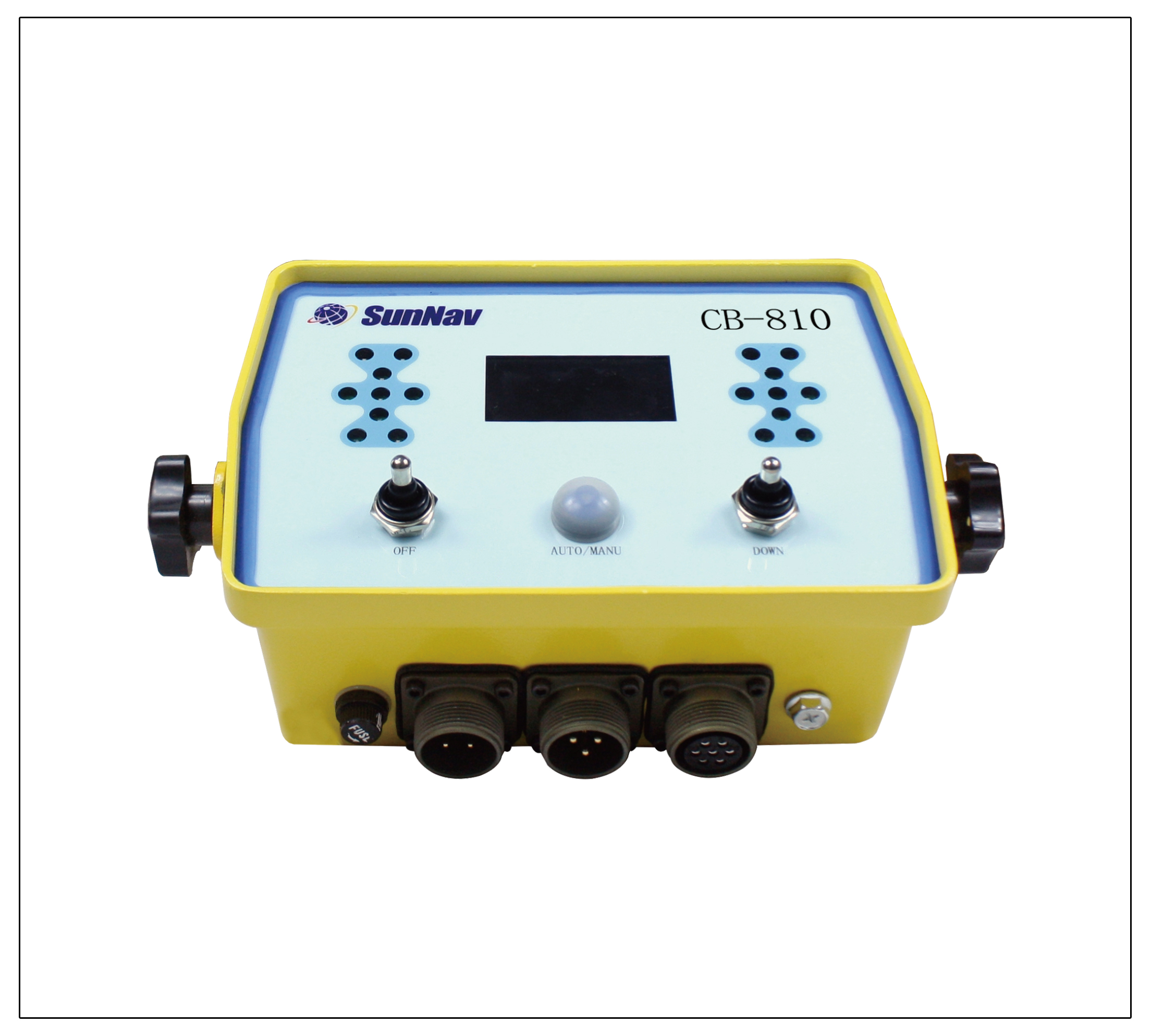

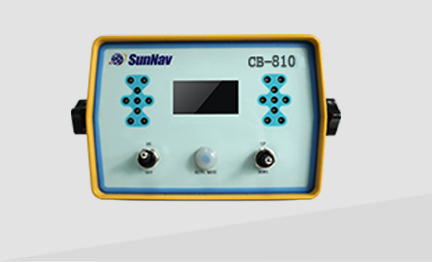

Vehicle-mounted Controller CB-808+

● Single laser-base system, the setting up and operation is ve ry simple
● The controller is designed for vehicle-mounted, easy to install or uninstall

● LCD display screen for displaying of real time altitude
● The function of GPS positioning & GSM communication is optional
● The tracking working trajectory , auto area calculating and remote controlling
    can be made after the data was uploaded to server (optional function)
● Double laser receiver is supported and making grading more p recisely and

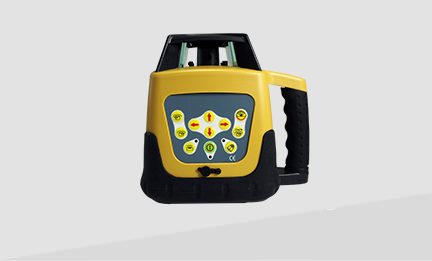

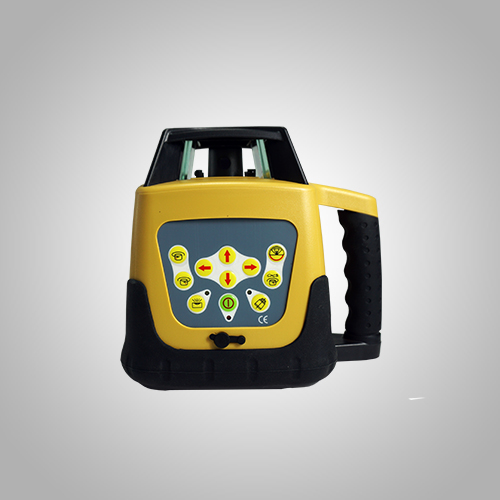

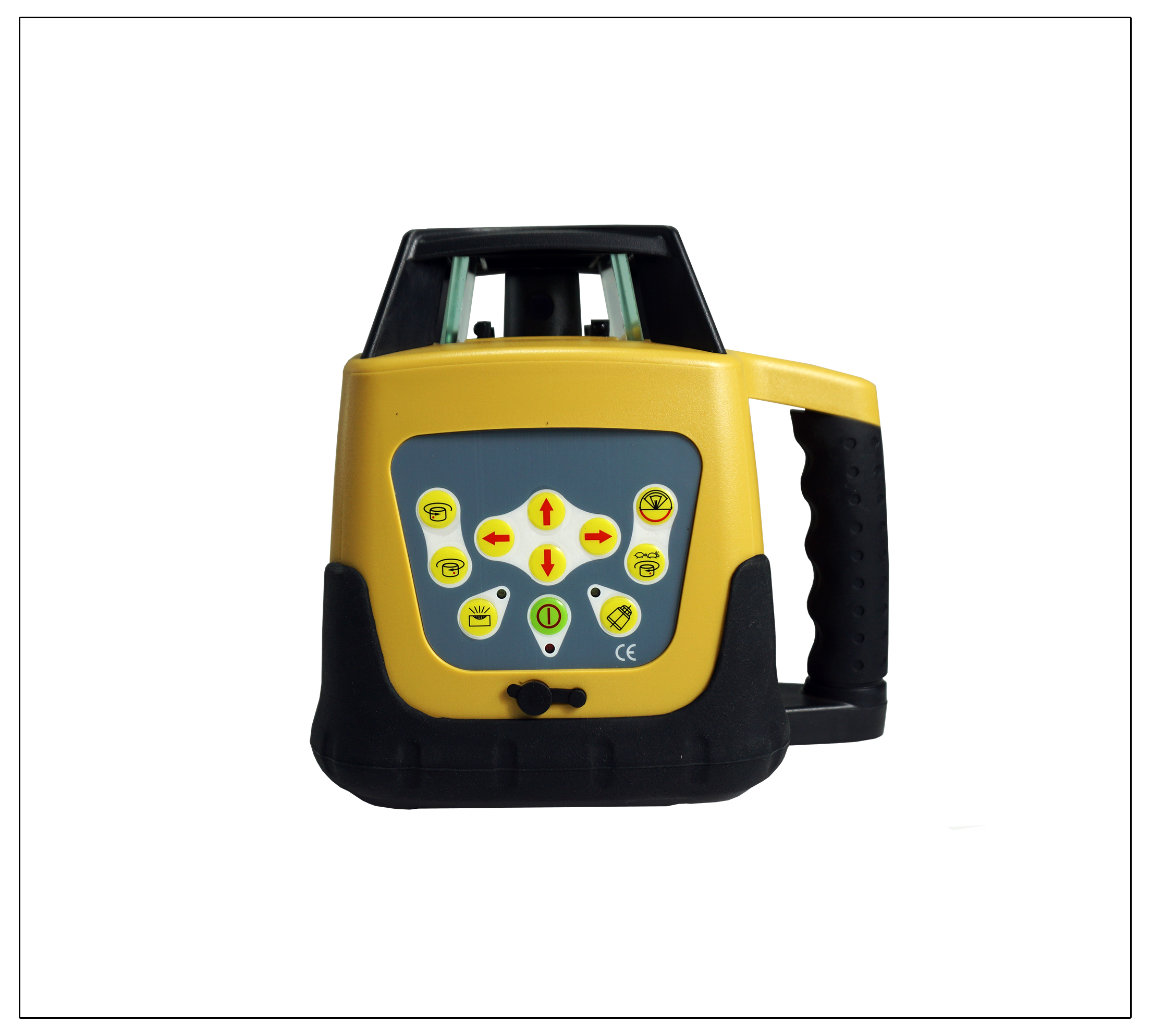

Laser Transmitter KF-508

● Highly visible laser beam
● Automatic self-leveling
● Horizontal leveling and Sloping leveling
● Automatic compensation for vertical and horizontal
● Intuitive one -touch operator controls
● Temperature calibrated, high accuracy for consistent performance across
larger job sites
● Multiple power option, NI-MH rechargeable batteries, alkalin e batteries or
direct power supply
● Fast setup, and automatic self-leveling minimizes operating costs and boosts
● Rugged, durable and water proof with IP68

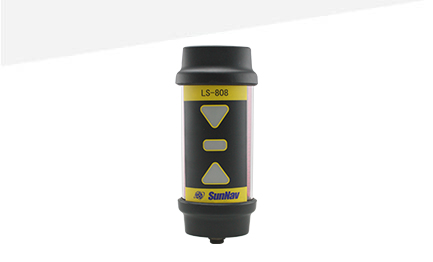

Laser Receiver LS-808

● Compatible with CB-808, CB-808P and CB-818
● Optional 3 or 4 feet electric mast capability
● High light LED, clearly visible
● Rugged design, 100% waterproof

Power     1pc

Control     1pc

Receiver     1pc

Accuracy of Leveling     ±2cm

Operating Temp.    40°C to 71°C

Storage Temp.     -55°C to 85°C

Controlling Handle    support

OLED Display Screen     Yes

Self-luminous    Yes

Wide Viewing Angle    Yes

High Contrast     Yes

Low Electricity Consumption     Yes

Dimension     41cmx35cmx20cm

Gross Weight     6kg

Laser Source: 2.5mW laser diode: Class-II Visible diode (635m)

Operating Range (diameter):600m (depends on environmental condition)

Sloping Leveling:Yes

Self-leveling Accuracy:±0.05mm/m

Self-leveling Range: ±5°

Rotation:600 rpm

Storage Temperature:-20°C to 80°C


Gross Weight:5.5kg

Power Source:NI-MH rechargeable battery, continuously work for 10 hours

Operating Temperature:-20°C to 70°C

Angle for Receiving Laser: 360°
Detection Windowr: 200mm
Detection Resolution: ±3mm
Vertical LED Indicator: Yes
Interface: RS-232 or RS-485 CAN J1939 (option)
Water/Dust Proof: IP68
Power Source: Power Supply
Operating Temperature: -40°C to 71°C
Storage Temperature: -55°C to 85°C
Electric Input: 9v to 16v
Dimension: 41cmx35cmx20cm
Weight: 4kg
