SINGNAL TRACKING

220 Channels

-GPS: L1/L2/L5

-BeiDou: B1/B2

-GLONASS: L1/L2

-Galileo: L1/E5

-SBAS: L1/L5

POSITIONING  SPECIFICATIONS

PostProcessing Static: Horizontal: 2.5mm+ 1ppm, Vertical: 5.0mm+1ppm

SBAS:Horizontal: 500mm,Vertical: 800mm

RealTime Kinematics (RTK): Horizontal: 8mm + 1ppm, Vertical:  15mm+ 1ppm

Initializationtime: <10s

Initialization reliability: > 99.9%

Up to50 Hz raw measurement & position outputs

Timeto First Fix

Cold start < 45s

Hot start < 11s

Signal re-acquisition<  2s

PHYSICAL  AND  ELECTRICAL  CHARACTERISTICS

Size: 213 x 119 x 73mm

Weight: 1.2 kg

Temperature Operating：- 40 ~ 70 ℃

Temperature Storage： - 45 ~ 75 ℃

Humidity: 95% condensation proof

Waterproof and dustproof: IP67

Impact vibration: can resist a meter offree fall

Power : 9-16 v

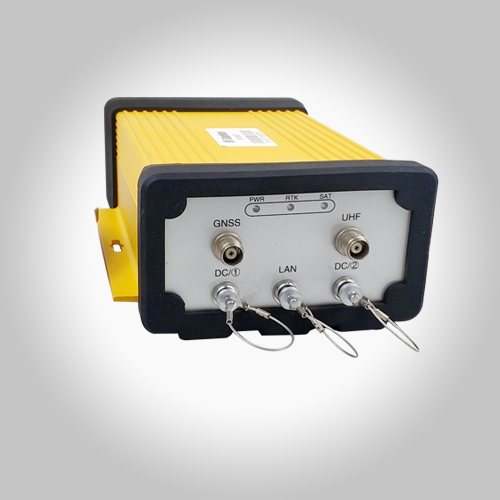

Communication interface: 2 RS232 interfaces /2 external powerinterfaces /1 Ethernet interface

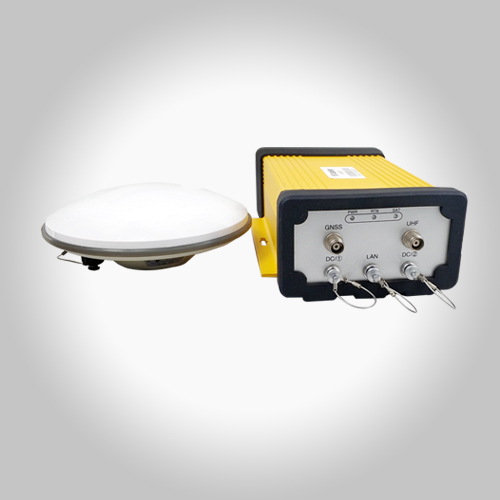

Radio frequency interface: 1 GNSS antennainterface /1 UHF antenna interface

REFEERENCE OUTPUTS / INPUTS

CMR/CMR+/SCMRX/RTCM 2.1, 2.2, 2.3, 3.0,3.18

COMMUNICATION  PROTOCOL

TRANSEOT/TRIMTALK

INSTRUCTIONS

3 LED indicator lights (power light/star searchlight/data transmission light)
