AG100 Plus Guidance System

SunNav guidance system AG100Plus consists of professional GNSS smart antenna, large display and LS- guidance software. It would be the ultimate guidance solution for today's precision farmer. Soft-ware has farmer-friendly GUI and large iconic buttons for each function. It features navigation access within 3-click ideal for minimal training and guidance experience. AG100Plus is robust, accurate and affordable enabling you to easily perform various farming tasks, extend your operating hours and enhance the productivity of your farm.

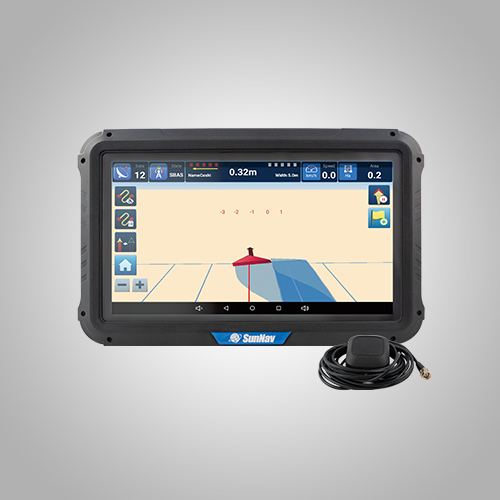

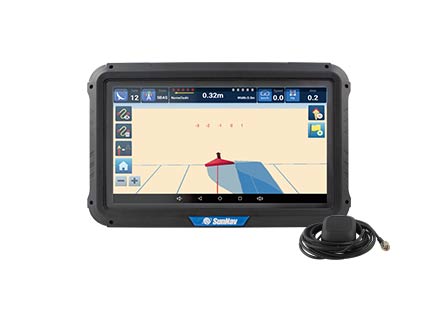

SunNav guidance system AG100 Plus consists of professional GNSS smart antenna, large display and LS- guidance software.

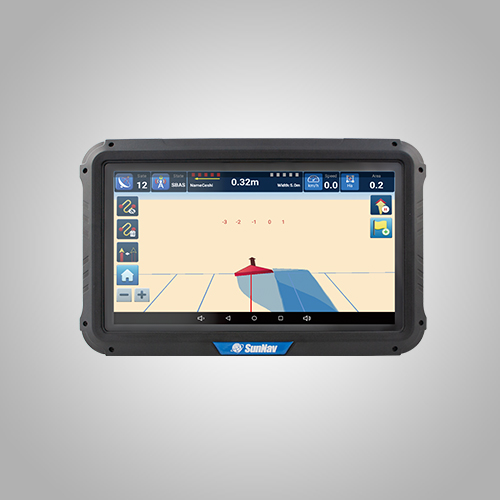

With 10.1 inch touchscreen displays and an intuitive interface, AG100Plus guidance system allows you to quickly access guidelines and coverage maps.

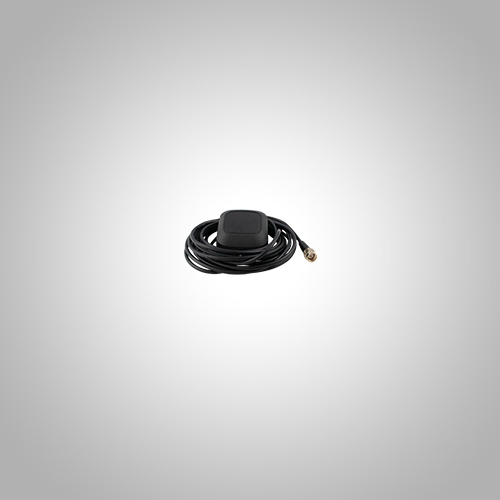

GNSS Antenna
GNSS antenna can give high precision and heading.
  • Features
  • Specifications
  • Application

Improve Efficiency : With 10 inch touchscreen display and intuitive interface, AG100Plus guidance system allows you to quickly access guidance lines and coverage maps.

Reduce the Waste : High precision allows the operator to navigate fields with minimal skips or overlaps in coverage,and help you reduce the waste of chemical, fertilizer or fuel.

Reliable GNSS : System utilizes professional GNSS receiver supports GPS/GLONASS or GPS/BeiDou that enables the system to be reliable in any environment at anytime. Get sub-meter pass-to-pass accuracy with SBAS ideal for farming applications that can be accomplished with lower-accuracy corrections

Easy to Install and Move : This system is portable and easy to install to work immediately. System can be used from spraying to tillage. It can be moved in minutes when you are ready to change to another tractor, combine or sprayer.
SYSTEMAndroid 7.1.1
4 cores, 1.5GHz
1G RAM , 2G optional 8G ROM , 16G optional
Built-in speaker (8ohm, 3W)		I/ O
INTERFACE		RS232 serial port*3 RS485*1
CAN*1 (support J1939, CAN Open protocol)
USB 2.0*1 (support host and debug mode) DC in*1
DI*4, DO*4
12V DC external power supply*3 Analog camera input*2
100M Fast Ethernet*1
DISPLAY10.1 inch high resolution LCD display Screen, resolution: 1024*600
Capacitive touch  screen, support  multi- touch		POWER12 DC input
Support  power  failure detection
Function
& button		Power switch keyNETWORK2.4G Wi- Fi,
IEEE802.11 g / b/ n BT4.0, BLE
GNSS(Option)-Support full sateliates
-Channels: 432 Channels
BDS:B1/B2
GPS:L1/L2
GLONASS:L1/L2
GALILEO:E1/E5b QZSS:L1/L5 SBAS:L1
RTK accuracy：
-Horizontal: 1cm +1pmm

-Vertical: 1.5cm +1pmm		Radio Module
(Option)		-Adjustable Full Band: 410-470 MHz,
Protocal: transparent, TrimTalk TT450S and etc.
ENVIRONMENT
PARAM ETER		Protection level: IP65
Working  temperature: - 20℃～+ 70℃,
Humidity: 0%～90%RH
Storage temperature: - 40℃～+ 85℃,
Humidity: 30%～95%RH
SIZE(W*H*D)297*203*43mm
