AG200 Land Leveling system

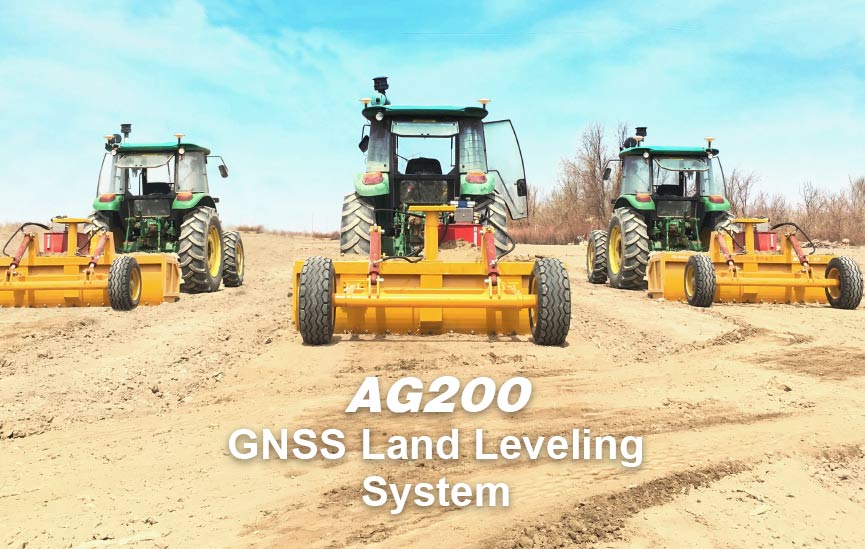

The AG200 system is a high-precision and high-performance GNSS Land Leveling system, independently developed by SunNav. Widely used in precision agriculture for wasteland restoration, land remediation and leveling, slope land conversion, paddy field leveling, dry land leveling and other large areas land leveling. It can also be used for water conservancy, airport construction and large-scale stadium construction.



				The AG200 system is a high-precision and high-performance GNSS Land Leveling system, inde-pendently developed by SunNav. Widely used in precision agriculture for wasteland restoration, land remediation and leveling, slope land con-version, paddy field leveling, dry land leveling and other large areas land leveling.

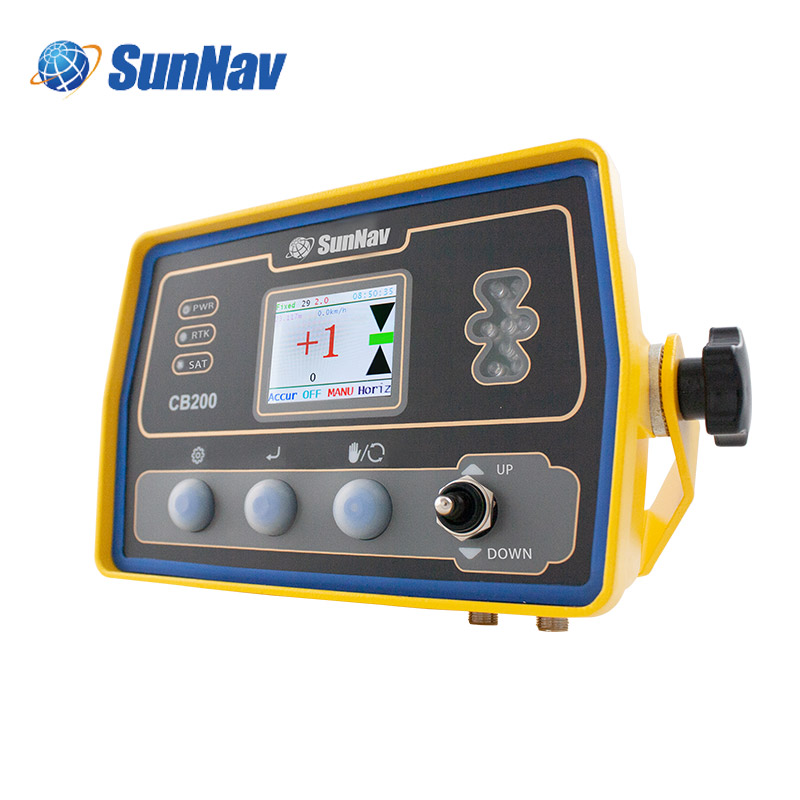

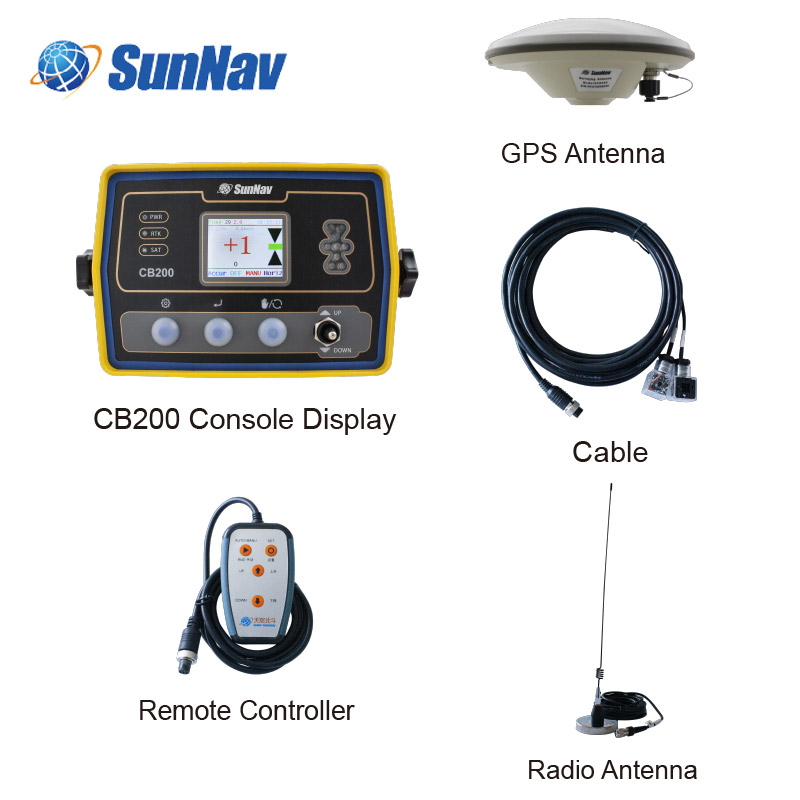

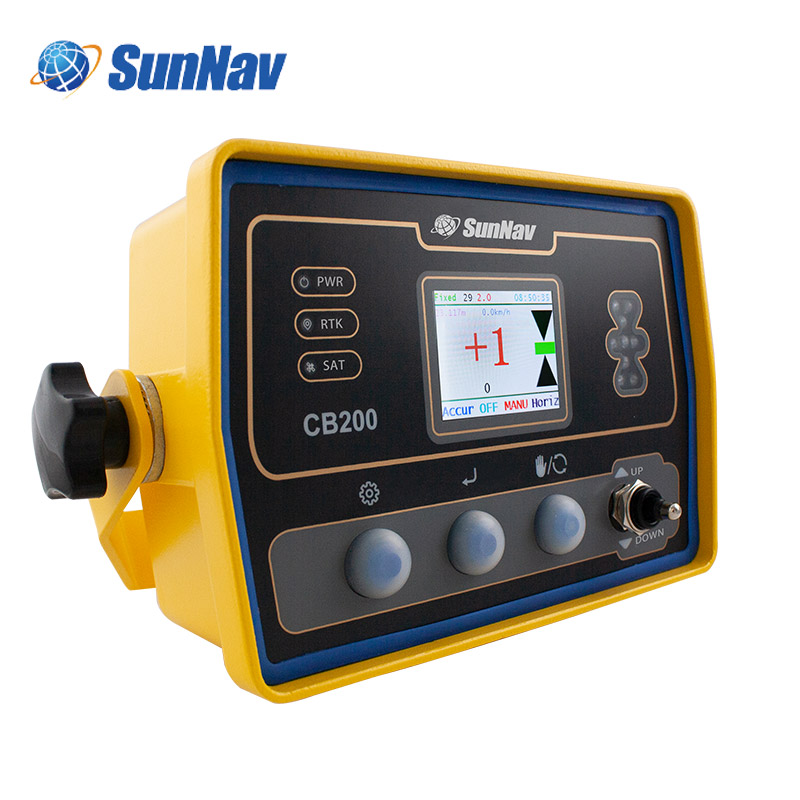

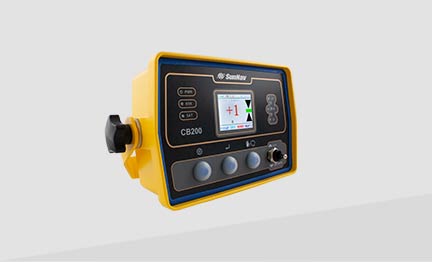

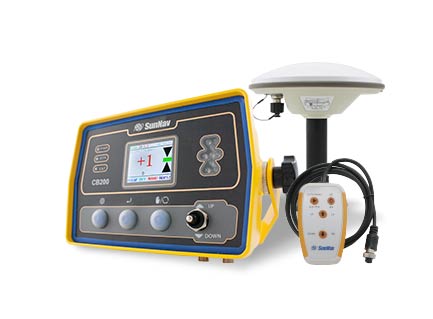

	CB-200 Easy operation, supports both horizontal and slope modes.

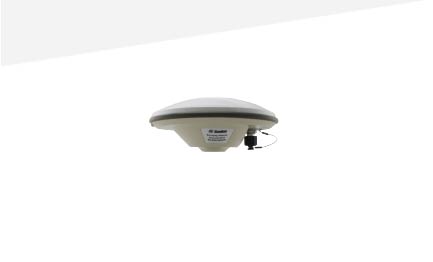

				GNSS Antenna GNSS antenna can give high precision

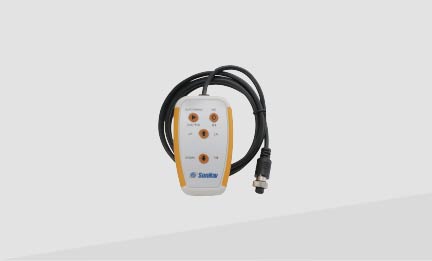

	Remote Controller Remote Controller is a manual controller, water-proof and dustproof is IP65

Features
Specifications
Application

Manual/AUTO Leveling Function
one set for Benchmark
CORS System
Support Slope Function
Long Working Range
Internal Radio Working Range: Radius 3-5KM, External Radio Working Range: Radius 15-25KM)
Easy Installation and Maintenance
GNSS(BEIDOU GPS/GLONASS)
Could work in Harsh Environment

Size	26x17x8cm
Material	Rugged and light weight metal package
Precision	±2cm
Voltage input	9-16V
Weight	1.7kg
Protocol	TRANSEOT/TRIMTALK
Static	H: 2.5mm+1ppm, V: 5.0mm+1ppm
Satellite Signals	BDS:B1/B2 GPS:L1/L2 GLONASS:L1/L2 GALILEO:E1/E5b QZSS:L1/L5 SBAS:L1
RTK	-Horizontal: ± (10 + 1×10 -6×D) mm -Vertical: ± (20 + 1×10 -6×D) mm
Data Format	NMEA-0183,RTCM2.X/RTCM3.0/RTCM3.2, MSM4,MSM5
Initialization reliability	> 99.9%

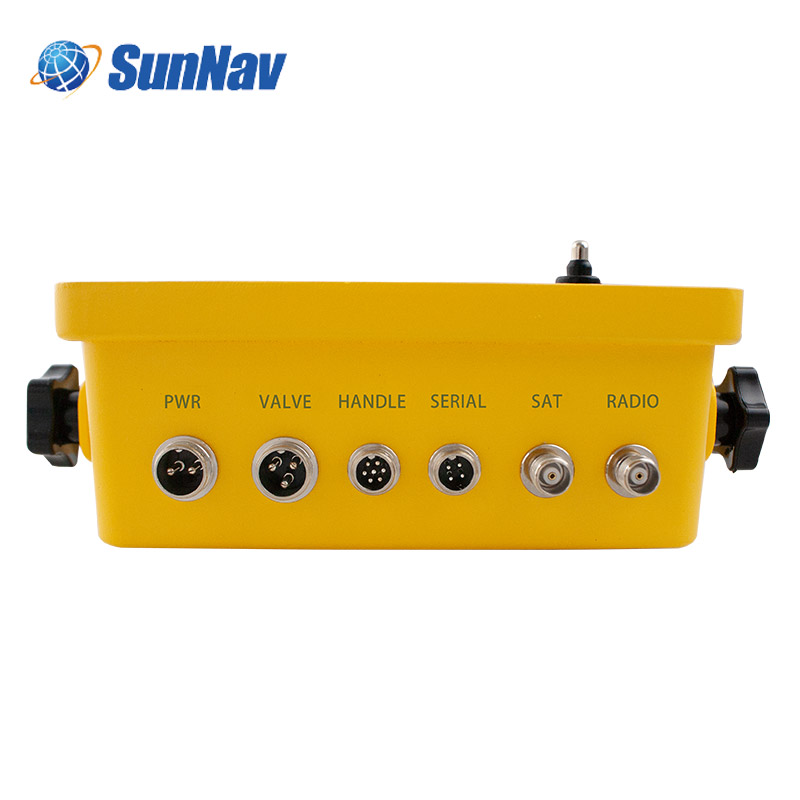

Data interface	Power Supply The electromagnetic valve Handle Serial Port Satellite Radio
